Test-All Mode

A quick way to confirm every button and axis on a controller works, especially handy on a freshly built panel or the AIM Ghost Joystick's 128 buttons.

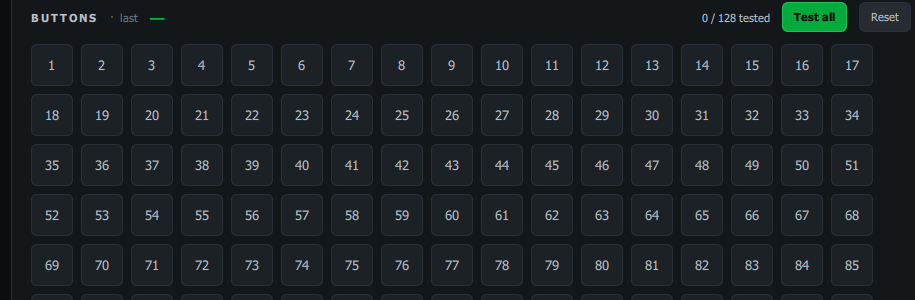

1. Click Test all in the BUTTONS header.
2. Press every button on your controller, one at a time, and sweep every axis to both ends.
3. Each button you press stays marked (dim green) once you release it. Each axis that reaches both ends gets green markers and a ✓ in the Axes card.
4. The counter shows your progress, for example 14 / 20 buttons · 2 / 2 axes full range.
5. Anything still plain is a button you haven't hit yet, or one that isn't reporting. An axis without a ✓ hasn't reached one or both ends.

Click Reset to start over; it clears the buttons and the axis travel together. Switching devices resets the count automatically.

This pairs nicely with the AIM Ghost Joysticks labels: hover a button you can't account for to see which cockpit control it should be.
